Oval Section Rebars

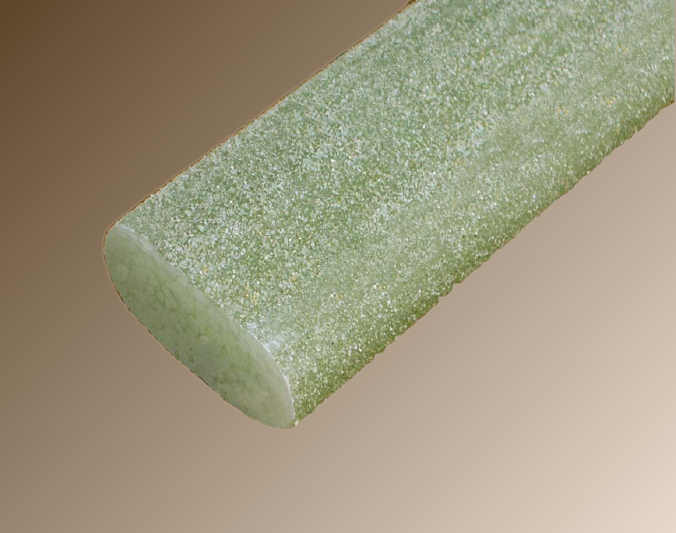

ovale 1

Often during assembly of cages it becomes necessary to couple two GRP bars. This operation, which must be performed in advance not only creates delays, but it makes the structure less rigid during lifting of the assembly.

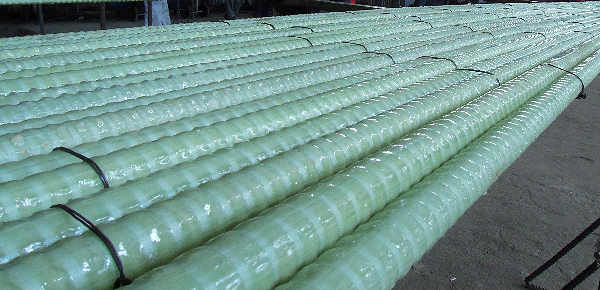

barre accoppiate 2

In addition, the European standard EN-1538 2000 “execution of diaphragms walls, prohibits the use of bundle and imposes a minimum distances between the longitudinal reinforcement bars.

In such cases ATP can supply a single bar with oval section with same section area and resistance as the of two bars coupled.

the following table highlights some the available dimensions.

Bundle of 2 rebars

Equivalent RWB-OV

section mm2

36 mm

36/65 mm

2000

40 mm

40/75 mm

2500

50 mm

50/90 mm

3920

80 mm

80/90 mm

6140

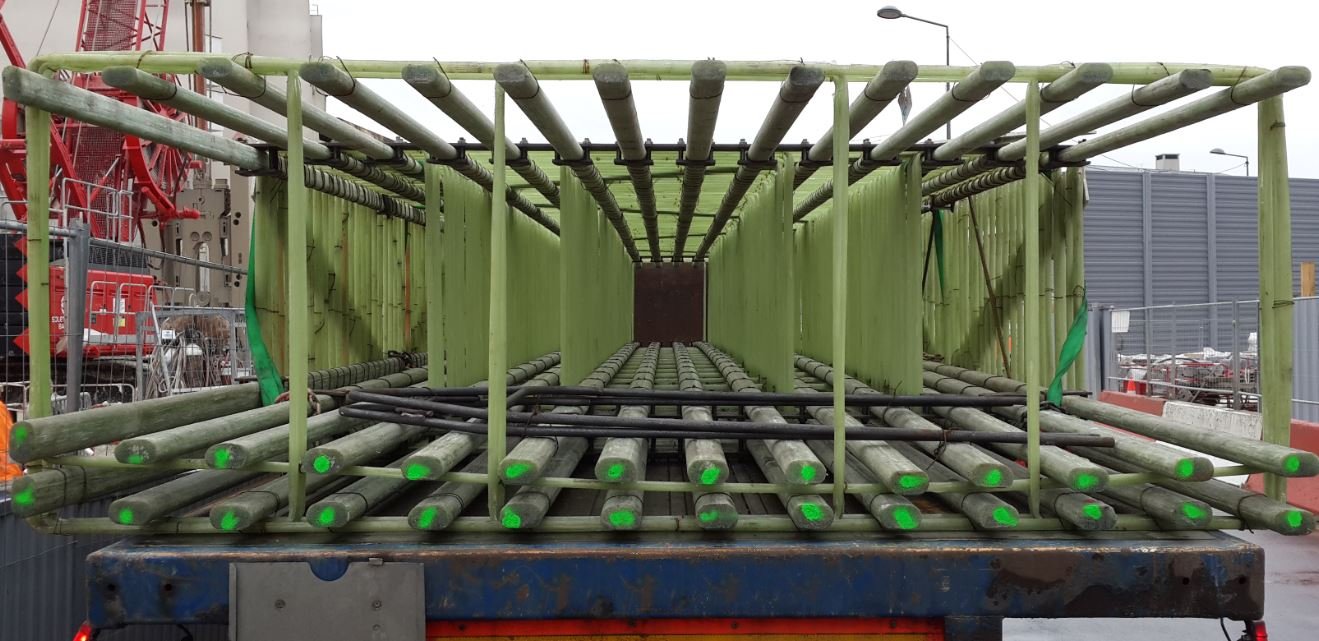

barre ovali 2

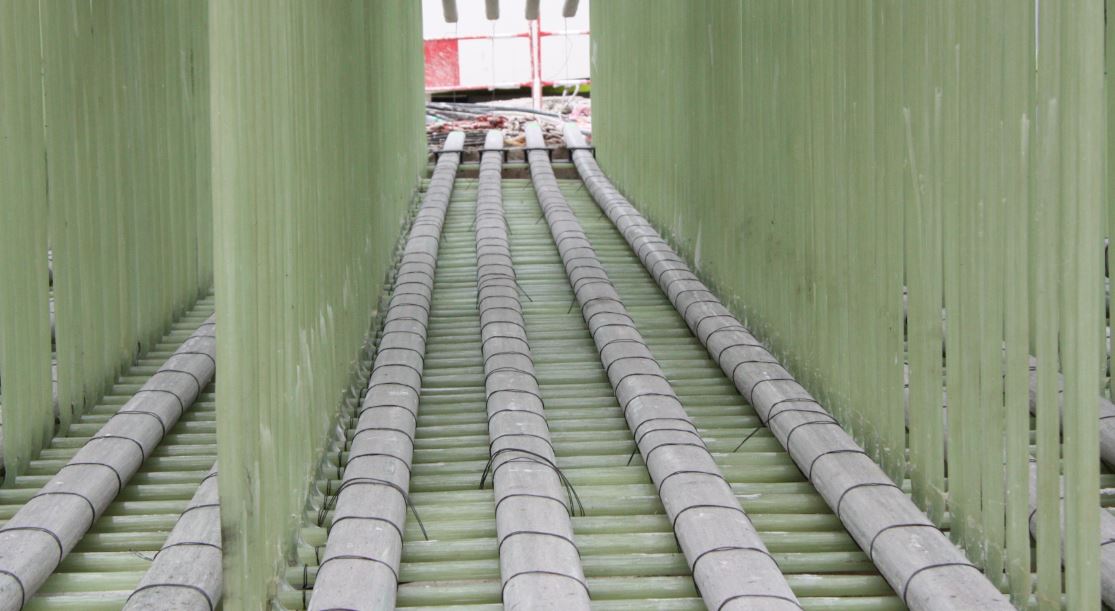

Barre ovali
